ZB-R系列橡膠泵具有高效的自清潔功能，簡潔的設計，優化了流體通道。高壓差下脈動率更低。適用于聚丁橡膠、氯丁二烯橡膠、EPDM、SBR、NBR、天然橡膠等工藝中。

　　技術參數

　　泵體: 高溫工具鋼，

　　齒輪: 高溫工具鋼，滲氮鋼

　　滑動軸承: 高溫工具鋼

　　軸封: 螺旋外排

　　加熱系統 : 電加熱 、熱水加熱

　　冷卻系統：軸端冷卻系統

　　規格/流量范圍: 從50CC - 2000CC, 50cm3/rev - 2000cm3/rev

　　操作參數

　　粘度: ≤20000 Pas

　　溫度: ≤130℃

　　清洗溫度: ≤350℃

　　進口壓力: ≤20MPa

　　高壓差: 可達50MPa

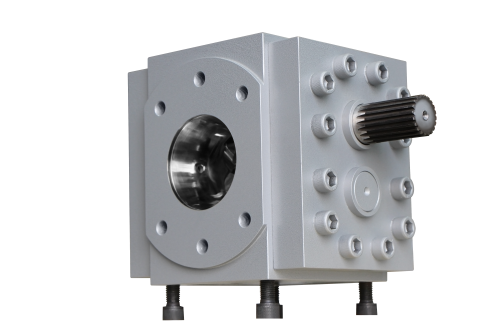

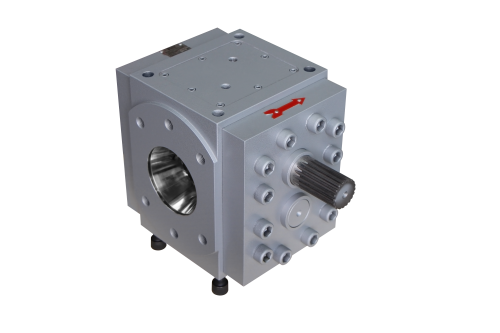

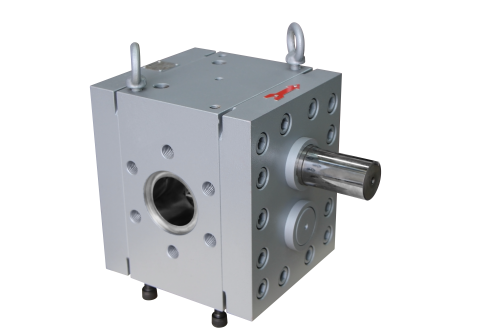

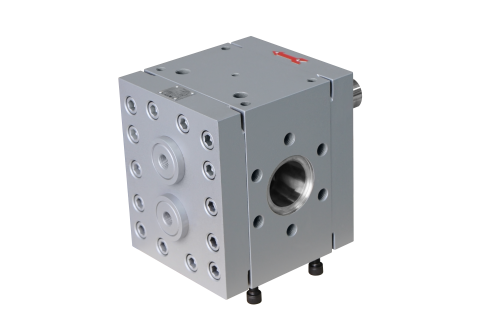

　　ZB-R Series Rubber Melt Pump

　　ZB-R series rubber melt pump is efficiently self-cleaning. The structure for shaft sleeves is simple, while the fluid passageway is specially designed. All of this make the pulsation rate become much lower under the higher differential pressure. This series of melt pump applies to butadiene rubber, chloroprene rubber, EPDM, SBR, NBR, natural rubber, etc.

　　Technical Parameter

　　Material for Melt Pump Body: High Temperature Tool Steel

　　Material for Gear: High Temperature Tool Steel or Nitrided Steel

　　Material for Sliding Bearing: High Temperature Tool Steel

　　Shaft Sealing: Spiral Discharging

　　Heating System: Electrical Heating or Hot Water Heating

　　Cooling System: Shaft End Cooling

　　Model/Volume Range: 50CC - 2000CC, 50cm3/rev - 2000cm3/rev

　　Operating Parameter

　　Viscosity: ≤20000

　　Working Temperature: ≤130℃

　　Cleaning Temperature:≤350℃

　　Inlet Pressure: ≤20MPa

　　Differential Pressure:≤50MPa
